Introduction
This is a low frequency tag scanner that adopt wireless identification technology and it suppors reading EMID, FDX-B(ISO11784/85) etc. tag.
This scanner uses high brightness OLED display which can be seen clearly in bright light environment. It can store max 128 records of tag information with its built-in memory, users can upload the information to the computer through USB cable.
This product is stable with simple operation which is widely used for little animal management, resource management, railway inspection etc.
Parameter
|
project
|
|
|
Model
|
W90B
|
|
working frequency
|
134.2Khz/125Khz
|
|
support tag
|
EMID、FDX-B(ISO11784/85)
|
|
reading/ writing range
|
2-12mm glass tube label ＞ 5cm
30mm animal ear mark ＞ 15cm (related to label performance)
|
|
standard
|
ISO11784/85
|
|
Reading time
|
＜100ms
|
|
prompt
|
0.91 "high brightness OLED screen, buzzer
|
|
power supply
|
3.7V (lithium battery)
|
|
memory
|
128 pieces of information
|
|
communication
|
USB2.0/Bluetooth
|
|
language
|
English or customized
|
|
working temp
|
-10℃~50℃
|
|
Storage temp
|
-30℃~70℃
|
|
Package size
|
190×120×30mm
|
|
weight
|
88g（With packaging: 152g）
|

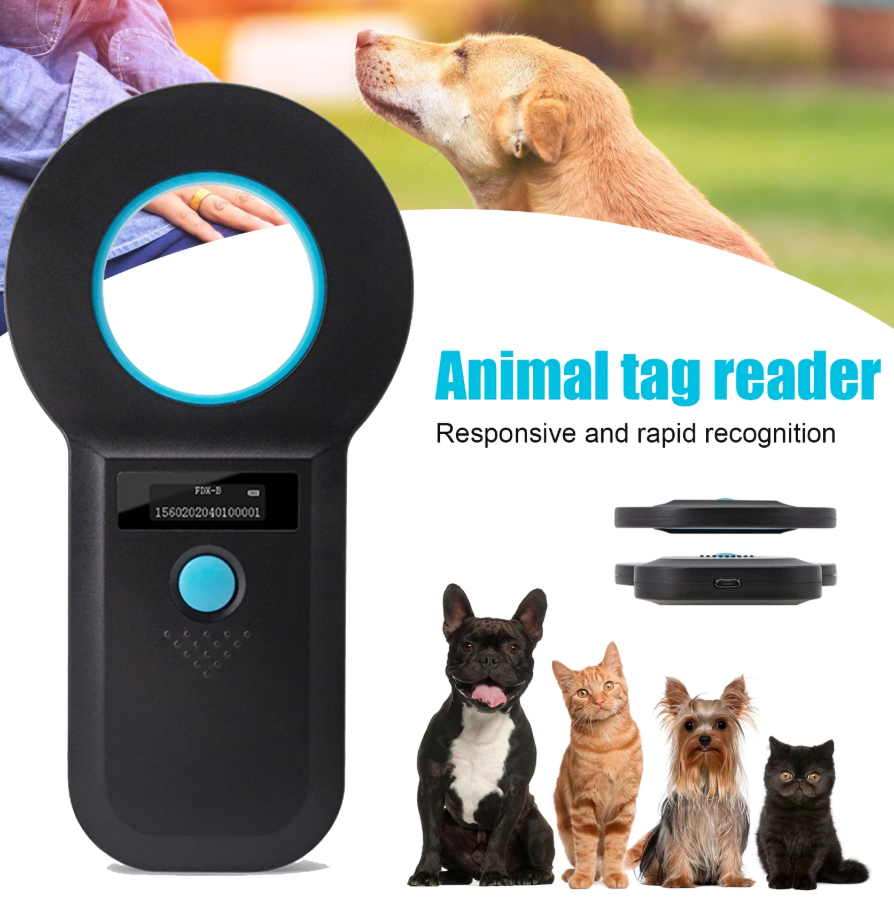

Animal Tag Reader
Compatible with EMID, FDX-B (ISO11784/85)

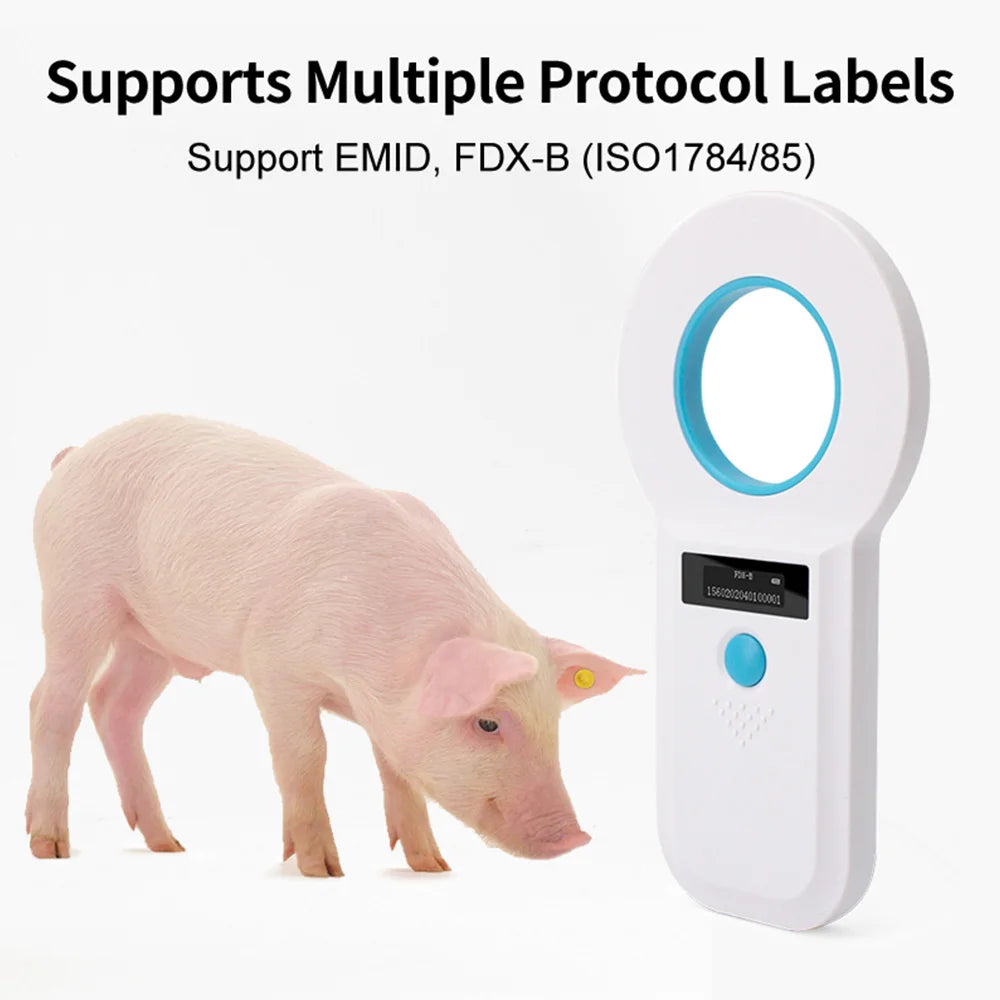

Supports Multiple Tags
Support EMID, FDX-B (ISO11784/85)
Support Multi-protocol, Strong Compatibility
OLED Screen
High-brightness OLED screen for clear display even in sunlight

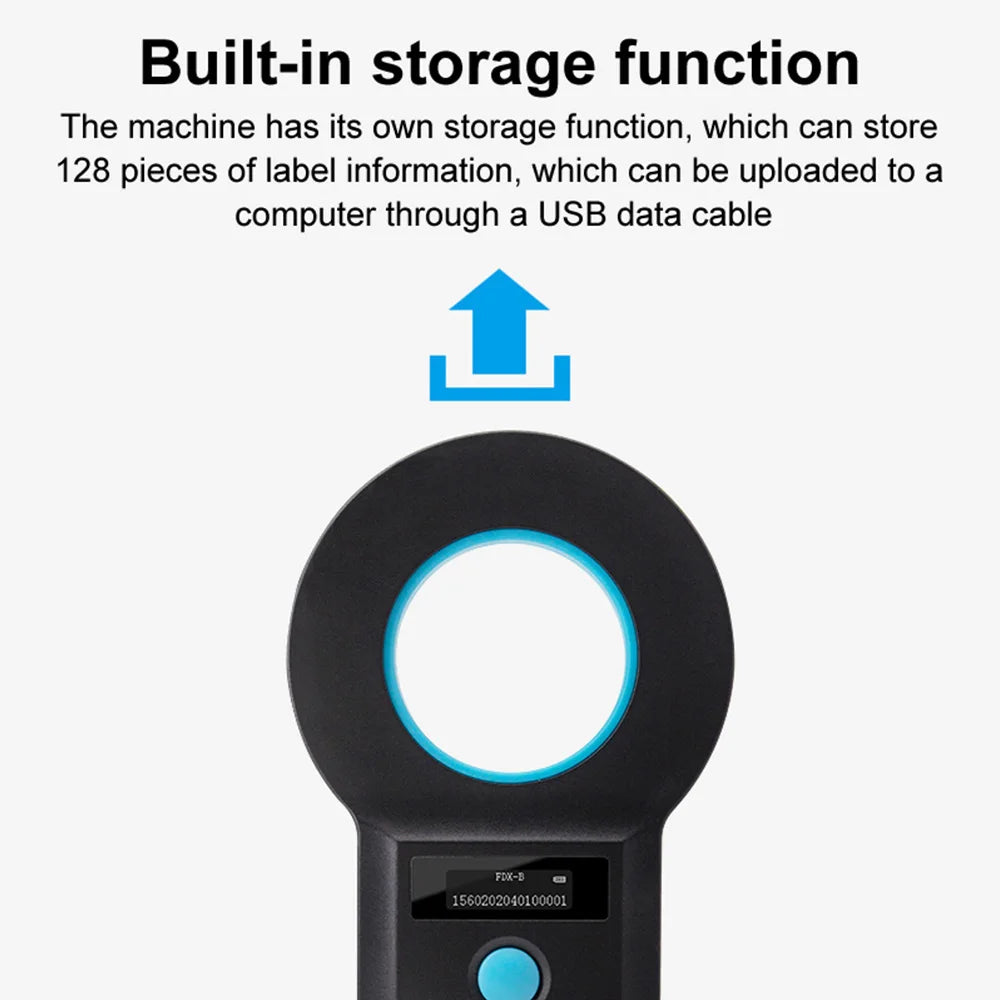

Built-in Storage Function
The machine has its own storage function, which can store 128 pieces of label information, which can be uploaded to a computer through a USB data cable
Contactless Card Reader
Using advanced RFID radio frequency technology, the identification distance is further 2~12mm, and the glass tube label is >5cm
,30mm animal tag ear tag>15cm (related to tag performance)

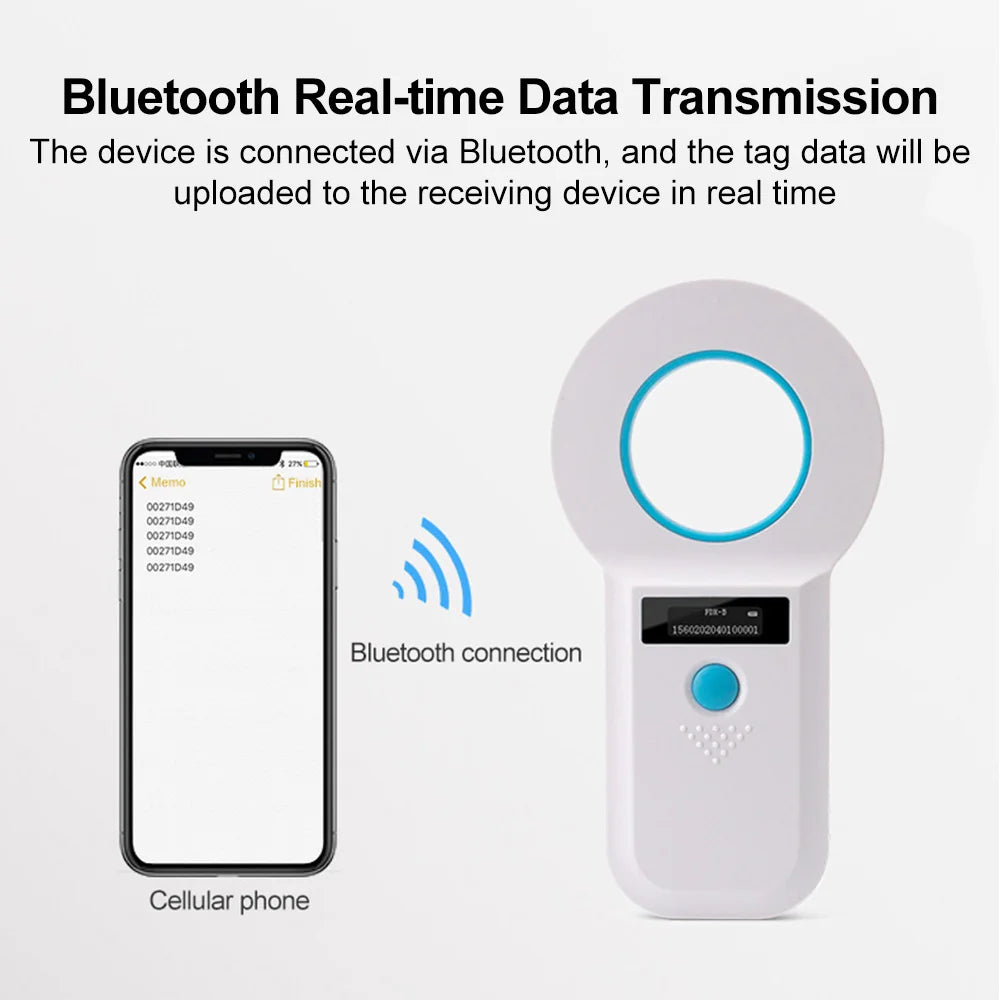

Bluetooth Real-time Data Transmission
The device is connected via Bluetooth, and the tag data will be uploaded to the accepted device in real time
